Bracing Rods and Sag Rods

Bracing rods and sag rods are essential components used in structural systems, particularly in Pre-Engineered Buildings (PEBs), to provide stability and maintain the integrity of the structure. Here’s a breakdown of each:

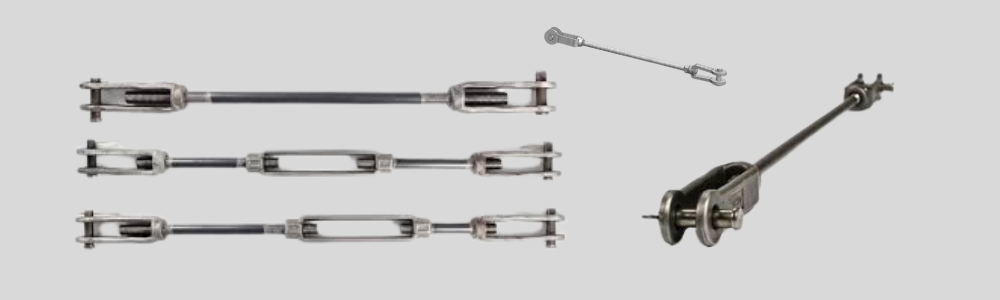

Bracing rods are structural elements used to reinforce and stabilize the building by preventing lateral movement. They are typically installed diagonally between columns, beams, or trusses and help resist forces such as wind loads, seismic forces, and other external pressures that may cause the structure to sway or deform.

Key Functions:

1. Lateral Stability: Bracing rods provide resistance against lateral forces like wind and seismic activity.

2. Structural Stiffness: They improve the overall stiffness of the structure, making it more rigid.

3. Prevention of Buckling: Bracing rods help in preventing buckling or lateral displacement in columns and beams.

Types of Bracing Systems:

– Cross Bracing: Uses two bracing rods arranged in an “X” configuration to distribute forces more effectively.

– Knee Bracing: Positioned between columns and beams, usually at the corners, to provide extra rigidity.

 Sag Rod:

Sag rods are horizontal rods typically installed between purlins (horizontal beams) or girts (horizontal wall members) to prevent them from sagging or bending under their own weight or under loads like roofing materials or wall cladding.

Key Functions:

1. Support for Purlins and Girts: Sag rods help keep these horizontal members in line and prevent sagging, ensuring structural integrity.

2. Tension Member: Sag rods function in tension, pulling the purlins or girts to maintain their straightness.

3. Prevent Deflection: By keeping the purlins and girts aligned, sag rods prevent excessive deflection, which could compromise the building’s stability or aesthetic appearance.

Key Differences:

Purpose: Bracing rods provide lateral stability to the overall structure, while sag rods prevent horizontal members (like purlins and girts) from sagging or deflecting.

Orientation: Bracing rods are typically installed diagonally (or sometimes vertically), while sag rods are installed horizontally between purlins and girts.

Functionality: Bracing rods work by resisting lateral forces such as wind or earthquakes, whereas sag rods act primarily as tension members to maintain straightness in horizontal members.

Applications in PEB:

1. Bracing Rods: Used in walls and roof structures to provide stability and prevent sway under external forces.
2. Sag Rods: Installed in roof structures to support purlins and in wall structures to support girts, ensuring they do not sag under loads.

Both bracing rods and sag rods are critical for maintaining the integrity and durability of PEB structures, ensuring they can withstand various forces and loads.
